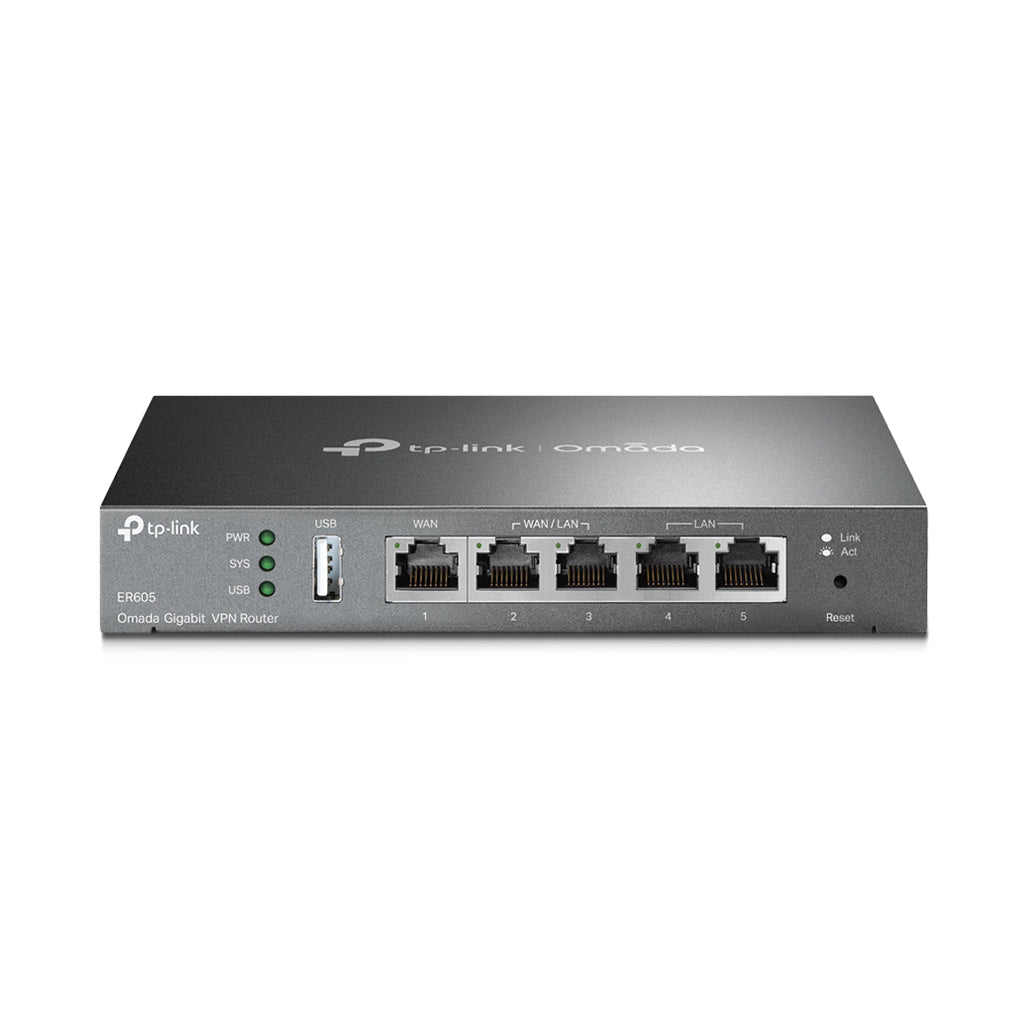

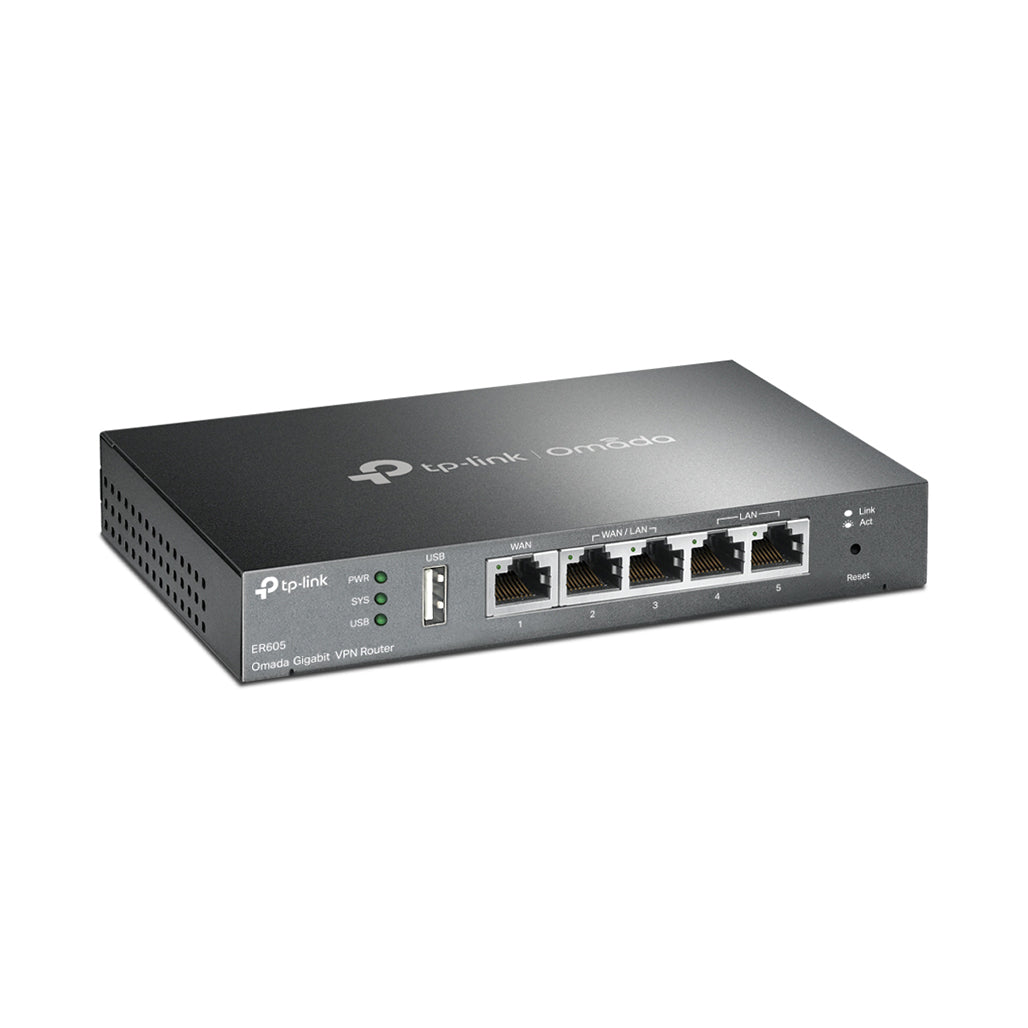

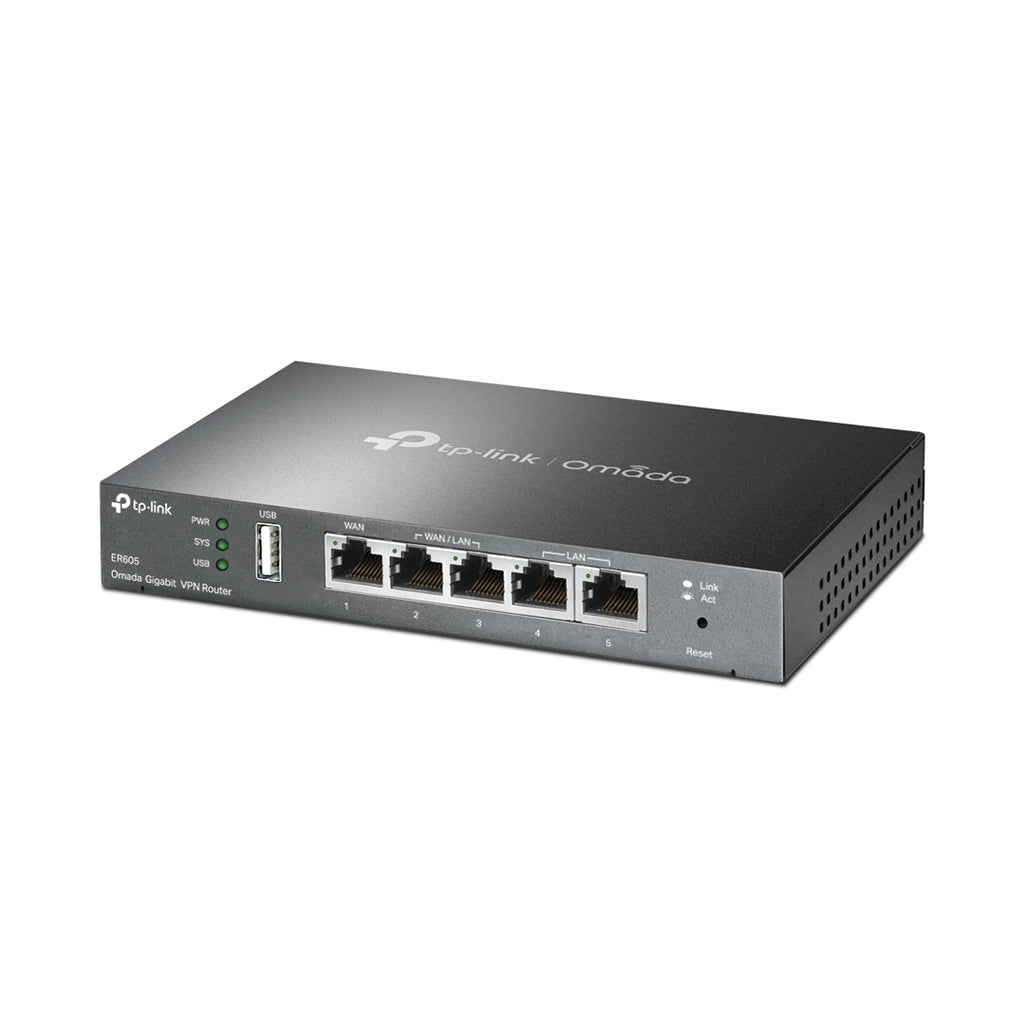

TP-Link ER605 (TL-R605) V2 Omada Gigabit VPN Router – Secure, High-Speed Multi-WAN Networking Solution

The TP-Link ER605 (TL-R605) V2 Omada Gigabit VPN Router is designed to provide high-speed, secure, and reliable...
Vendor: TP-Link
SKU: ER605-R13-K
Availability: Many In Stock
Product Type: Wireless Routers
$90.00
$120.00
$90.00
Please hurry! Only 0 left in stock
Subtotal: $90.00

Excluding VAT

TP-Link ER605 (TL-R605) V2 Omada Gigabit VPN Router – Secure, High-Speed Multi-WAN Networking Solution

TP-Link ER605 (TL-R605) V2 Omada Gigabit VPN Router – Secure, High-Speed Multi-WAN Networking Solution

$120.00 $90.00

TP-Link ER605 (TL-R605) V2 Omada Gigabit VPN Router – Secure, High-Speed Multi-WAN Networking Solution

$120.00 $90.00

The TP-Link ER605 (TL-R605) V2 Omada Gigabit VPN Router is designed to provide high-speed, secure, and reliable network connectivity for businesses and home offices. Seamlessly integrating with Omada’s Software Defined Networking (SDN) platform, this router ensures centralized cloud management, zero-touch provisioning, and intelligent monitoring, allowing for efficient remote network administration. Equipped with five gigabit ports, including one dedicated WAN and two interchangeable WAN/LAN ports, it optimizes bandwidth utilization through advanced load balancing. A USB WAN port enables mobile broadband backup, ensuring uninterrupted internet access in case of primary connection failure.

This high-performance router supports up to 20 LAN-to-LAN IPsec VPN tunnels, 16 OpenVPN, 16 L2TP, and 16 PPTP VPN connections, making it an excellent choice for secure site-to-site data transmission. Enhanced security features such as firewall policies, DoS attack prevention, and IP/MAC/URL filtering safeguard sensitive data against cyber threats. With user-friendly network segmentation via VLAN support and a robust access management system, businesses can maintain strict control over network resources. The TP-Link ER605 is a feature-rich solution offering reliability, scalability, and security for modern networking needs.

Key Features:

  • Omada SDN Integration: Enables cloud-based centralized management with zero-touch provisioning and intelligent monitoring for simplified network administration.
  • Multi-WAN Load Balancing: Up to three gigabit WAN ports and an additional USB WAN for 4G/3G mobile broadband backup ensure continuous internet access and optimized bandwidth distribution.
  • Advanced VPN Support: Secure remote access with up to 20 IPsec LAN-to-LAN tunnels, 16 OpenVPN, 16 L2TP, and 16 PPTP VPN connections, ensuring encrypted and reliable data communication.
  • Robust Security Measures: Includes advanced firewall protection, DoS defense, IP/MAC/URL filtering, IP-MAC binding, and one-click ALG activation to defend against cyber threats.
  • Comprehensive Access Management: Administrators can control internet usage via IP/MAC/URL filtering, ACL rules, and Captive Portal authentication for effective user management.
  • High-Speed Gigabit Ports: Five gigabit ports, including configurable WAN/LAN interfaces, provide fast and stable wired connectivity for multiple devices.
  • VLAN Support for Network Segmentation: Facilitates enhanced security and efficiency by creating virtual network segments to isolate and manage network traffic effectively.
  • Easy Setup & Management: The Omada app allows quick configuration, real-time network monitoring, and remote management via a user-friendly interface.

Specifications:

Security

  • Access Control: Source/Destination IP-Based Access Control
  • Filtering:
    • WEB Group Filtering
    • URL Filtering
    • Web Security
  • ARP Inspection:
    • Sending GARP Packets
    • ARP Scanning
    • IP-MAC Binding
  • Attack Defense:
    • TCP/UDP/ICMP Flood Defense
    • Block TCP Scan (Stealth FIN/Xmas/Null)
    • Block Ping from WAN

Hardware Features

  • Standards and Protocols:
    • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
    • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
  • Interface:
    • 1 Fixed Gigabit WAN Port
    • 2 Fixed Gigabit LAN Ports
    • 2 Changeable Gigabit WAN/LAN Ports
    • 1 USB 2.0 Port (for 4G/3G Modem as WAN Backup‡)
  • Network Media:
    • 10BASE-T: UTP Category 3, 4, 5 Cable (Max 100m) / EIA/TIA-568 100Ω STP (Max 100m)
    • 100BASE-TX: UTP Category 5, 5e Cable (Max 100m) / EIA/TIA-568 100Ω STP (Max 100m)
    • 1000BASE-T: UTP Category 5, 5e, 6 Cable (Max 100m)
  • Fan Quantity: Fanless
  • Button: Reset Button
  • Power Supply: External 12V/1A DC Adapter
  • PoE Budget: N/A
  • Flash: 128 MB NAND
  • DRAM: 256 MB DDR
  • LED Indicators: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
  • Dimensions (W x D x H): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
  • Protection: 4 kV Surge Protection
  • Enclosure: Steel
  • Mounting: Desktop/Wall-Mount
  • Max Power Consumption: 7.94 W

Performance

  • DPI Throughput:
    • TCP: 905 Mbps
    • UDP: 788 Mbps
  • Concurrent Sessions: 150,000
  • New Sessions Per Second: 2,600
  • NAT Performance:
    • Static IP:
      • Upload: 945.77 Mbps
      • Download: 945.56 Mbps
      • Bi-Directional: 1808.29 Mbps
    • DHCP:
      • Upload: 945.93 Mbps
      • Download: 945.43 Mbps
      • Bi-Directional: 1808.11 Mbps
    • PPPoE:
      • Upload: 940.44 Mbps
      • Download: 940.52 Mbps
      • Bi-Directional: 1804.27 Mbps
    • L2TP:
      • Upload: 845.64 Mbps
      • Download: 802.65 Mbps
      • Bi-Directional: 931.96 Mbps
    • PPTP:
      • Upload: 771.66 Mbps
      • Download: 874.81 Mbps
      • Bi-Directional: 999.54 Mbps
  • Packet Forwarding Rate:
    • 64 Byte Packet:
      • Upload/Download: 1,402,238 pps
      • Bi-Directional: 1,681,548 pps
    • 66 Byte Packet:
      • Upload/Download: 954.50 Mbps
      • Bi-Directional: 1130.00 Mbps
    • 1,518 Byte Packet:
      • Upload/Download: 997.50 Mbps
      • Bi-Directional: 1965.00 Mbps
  • IPsec VPN Throughput:
    • ESP-MD5-AES256: 171.26 Mbps
    • ESP-SHA1-AES256: 224.86 Mbps
    • ESP-SHA2-AES256: 248.04 Mbps
  • OpenVPN: 21.70 Mbps
  • L2TP VPN Throughput:
    • Unencrypted: 864.65 Mbps
    • Encrypted: 47.11 Mbps
  • PPTP VPN Throughput:
    • Unencrypted: 703.20 Mbps
    • Encrypted: 76.65 Mbps

Basic Functions

  • WAN Connection Type:
    • Static/Dynamic IP
    • PPPoE
    • PPTP
    • L2TP
    • Mobile Broadband (4G/3G Modem via USB)
  • MAC Clone: Modify WAN/LAN MAC Address†
  • DHCP:
    • DHCP Server/Client
    • DHCP Address Reservation
    • Multi-Net DHCP
    • Multi-IP Interfaces
  • IPv6 Support: Static IP, SLAAC, DHCPv6, PPPoE, 6to4 Tunnel, PassThrough
  • VLAN: 802.1Q VLAN
  • IPTV Support: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Functions

  • ACL (Access Control List): IP/Port/Protocol/Domain Name Filtering
  • Advanced Routing: Static Routing, Policy Routing
  • Bandwidth Control: IP-Based Bandwidth Control
  • Load Balancing:
    • Intelligent Load Balancing
    • Application Optimized Routing
    • Link Backup (Timing§, Failover)
    • Online Detection
  • NAT (Network Address Translation):
    • One-to-One NAT
    • Multi-Net NAT
    • Virtual Server
    • Port Triggering
    • NAT-DMZ
    • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
  • Security Features:
    • SPI Firewall
    • VPN Passthrough
    • FTP/H.323/PPTP/SIP/IPSec ALG
    • DoS Defense, Ping of Death
    • Local Management
  • Session Limit: IP-Based Session Limit

VPN Capabilities

  • IPsec VPN:
    • 20 IPsec VPN Tunnels
    • LAN-to-LAN, Client-to-LAN
    • Main, Aggressive Negotiation Mode
    • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
    • IKEv1/v2, NAT Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS)
  • PPTP VPN:
    • PPTP VPN Server
    • 10 PPTP VPN Clients
    • 16 Tunnels
    • PPTP with MPPE Encryption
  • L2TP VPN:
    • L2TP VPN Server
    • 10 L2TP VPN Clients
    • 16 Tunnels
    • L2TP over IPsec
  • OpenVPN:
    • OpenVPN Server
    • 10 OpenVPN Clients
    • 16 OpenVPN Tunnels

Authentication

  • Web Authentication:
    • No Authentication
    • Simple Password
    • Hotspot (Local User / Voucher / SMS / Radius)
    • External Radius Server
    • External Portal Server
    • Facebook

Management

  • Omada App: Yes (Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
  • Centralized Management:
    • Omada Hardware Controller (OC300, OC200)
    • Omada Software Controller
    • Omada Cloud-Based Controller
  • Cloud Access: Yes (Requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
  • Maintenance: Web Management Interface, Remote Management, Config Export/Import, SNMP v1/v2c/v3, Ping & Traceroute Diagnostics§, NTP Synchronization§, Syslog Support
  • Zero-Touch Provisioning: Yes

Others

  • Certifications: CE, FCC, RoHS
  • Package Contents: Gigabit VPN Router ER605, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
  • System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10/11, Mac OS, NetWare, UNIX, Linux
  • Operating Environment:
    • Temperature: 0–40°C (32–104°F)
    • Storage Temperature: -40–70°C (-40–158°F)
    • Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing

Conclusion:

The TP-Link ER605 (TL-R605) V2 Omada Gigabit VPN Router is an ideal networking solution for businesses, remote offices, and advanced home networks. With multi-WAN capabilities, powerful VPN support, and enterprise-grade security features, it ensures seamless connectivity and data protection. Integrated with Omada SDN, this router offers a scalable, cloud-managed network infrastructure that enhances efficiency and reliability. Whether for secure business communications or high-speed internet access, the ER605 provides a robust and future-proof solution.
